Wi-Fi 6E and Wi-Fi 7 Testing Services

JJR Laboratory China is equipped with automated testing systems for Wi-Fi 6E and Wi-Fi 7, fully capable of supporting regulatory testing requirements for CE, FCC, ised, MIC, and more.

We operate comprehensive Electromagnetic Compatibility (EMC) and Radio Frequency (RF) testing laboratories, offering certification services for BT, Wi-Fi 2.4G, Wi-Fi 5G, Wi-Fi 6E, Wi-Fi 7, and mobile communication technologies including 2G/3G/4G/5G.

Introduction to Wi-Fi 6E and Wi-Fi 7:

Wi-Fi 6E

Wi-Fi 6E is an extension of Wi-Fi 6 into the 6 GHz frequency band. The "6" in "Wi-Fi 6E" refers to the sixth generation of Wi-Fi technology, and "E" stands for "Extended," indicating the use of a new frequency band, which provides significant advantages. Similar to existing Wi-Fi bands, the new spectrum and its usage policies vary depending on geographical location and regulations. Currently, the 6 GHz spectrum ranges from 5.925 GHz to 6.425 GHz in the European market, and from 5.925 GHz to 7.125 GHz in the U.S. market.

Wi-Fi 7

The latest Wi-Fi technology, Wi-Fi 7, is set to be adopted in 2024, having undergone extensive development since 2021. Known as 802.11be, Wi-Fi 7 doubles the bandwidth with a channel width of 320 MHz. With a fourfold increase in QAM (Quadrature Amplitude Modulation) and additional spatial streams, it delivers throughput speeds of up to 30 Gbps, operating across all three bands: 2.4 GHz, 5 GHz, and 6 GHz.

Relevant Testing Standards:

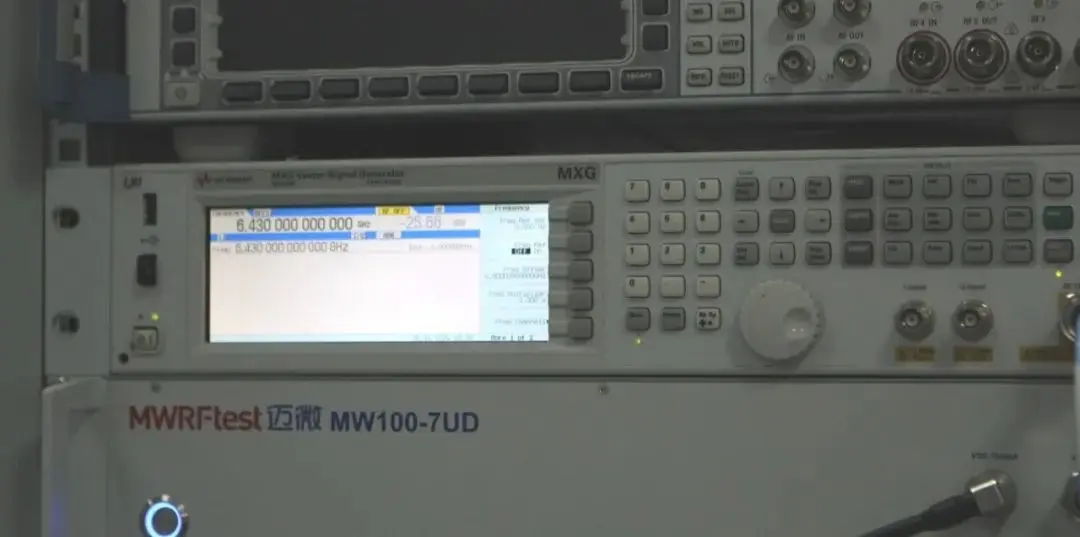

JJR’s EMC and RF laboratories feature multiple internationally compliant 3-meter anechoic chambers, shielded rooms, automated systems for radiated immunity testing, SAR (Specific Absorption Rate) testing, and RF testing for 2G, 3G, 4G technologies, as well as Bluetooth and Wi-Fi. We provide pre-compliance testing, EMC rectification solutions, and global product certifications such as:

- China: CCC, SRRC

- Europe: ce emc, ce red

- USA: fcc id

- Canada: ic id

- Japan: PSE, VCCI, MIC

- Australia: RCM

- Korea: KC

- Taiwan: bsmi, NCC
