How much does SRRC Certification cost?

srrc certification testing fees

The SRRC certification testing fee is $1,450 USD (we are a Chinese laboratory and can save you 30% of the SRRC certification cost and time).

Test Report Details

EUT: Cam.G More

- Wireless Connection: Bluetooth Only

- Cost (USD): $1,450 per model

- Delivery Time: 6-8 weeks

- Test Standard: MIIT No. [2021] 129

- Samples Required:

- 5 conducted units

- 1 RF unit

Note:If SRRC pre-testing fails, we offer 2 hours of free re-testing.

Tested Device: CamG Light

- Wireless Connection: Bluetooth Only

- Cost (USD): $1,450 per model

- Delivery Time: 6-8 weeks

- Test Standard: MIIT No. [2021] 129

- Samples Required:

- 5 conducted units

- 1 RF unit

Note:If SRRC pre-testing fails, we offer 2 hours of free re-testing.

What is SRRC certification?

For walkie-talkie products sold in the Chinese domestic market, SRRC certification is required. SRRC is a mandatory certification requirement by the State Radio Regulation of China. Since June 1, 1999, the Ministry of Information Industry (MII) of China has mandated that all radio components products sold and used in China must obtain Radio Type Approval Certification. This certification requires domestically produced and sold radio transmission products to have a 'Radio Transmission Equipment Model Approval Certificate.' Otherwise, they are not allowed to be listed for sale. Manufacturers must indicate the model approval code on the label of the walkie-talkie when it leaves the factory.

Documents required for walkie-talkie SRRC certification:

1. Application form (two copies);

2. Power of attorney (two copies);

3. Client's business license;

4. Prototype, quantity varies depending on the product, including three to five units with RF leads (RF port or SMA port);

5. Client's ISO certificate or company profile and company capability description;

6. Product specifications, circuit diagrams, manuals, block diagrams, operating instructions, etc.;

7. Antenna gain and antenna pattern;

8. Test direction;

9. Company's business license (annual inspection must not expire);

10. Three color photos of the EUT (must include all interfaces and sides);

11. Frequency channel correlation table (only required if there are many working channels, such as products using DSSS or FHSS modes).

SRRC certification test contents:

1. RMS phase error; frequency tolerance; power control;

2. RF output modulation spectrum; conducted spurious emission;

3. Peak phase error; maximum average power;

4. Transient time power relationship; RF output switching spectrum;

5. Static reference sensitivity; radiated spurious emission.

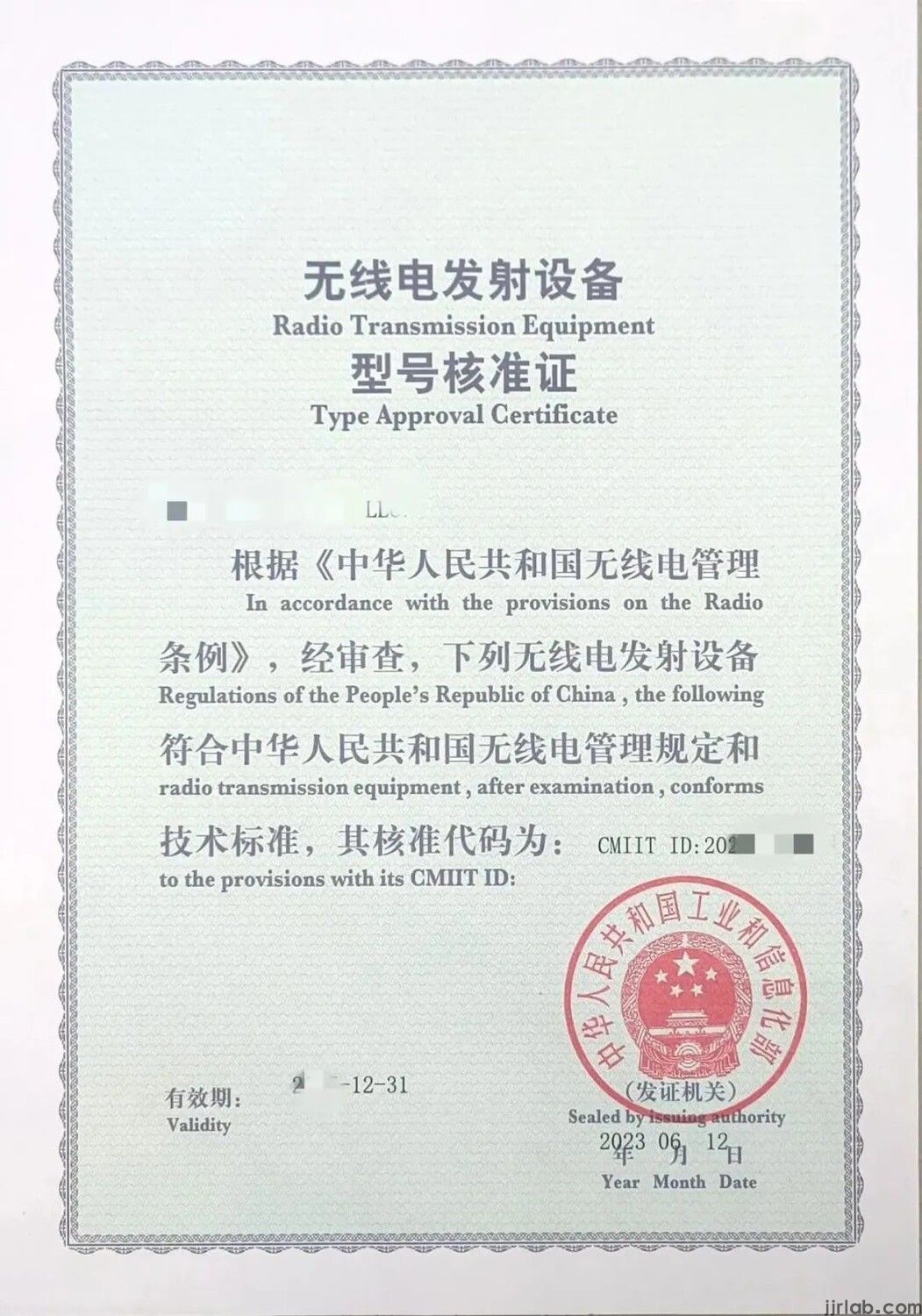

SRRC certification mark:

l There is no special certification mark, only a set of model approval codes (CMIIT ID: XXXXXXXXXX)

l Issuing authority: Ministry of Industry and Information Technology of the People's Republic of China

l Issuing unit: Radio Management Bureau of the Ministry of Industry and Information Technology

l Testing unit: SRMC (State Radio Monitoring Center) and others

Which products need SRRC certification?

I. Public mobile communication equipment

1. GSM/CDMA/Bluetooth mobile phones

2. GSM/CDMA/Bluetooth fixed telephones

3. GSM/CDMA/Bluetooth modules

4. GSM/CDMA/Bluetooth cards

5. GSM/CDMA/Bluetooth data terminals

6. GSM/CDMA base stations, amplifiers, repeaters

II. 2.4GHz/5.8GHz wireless access equipment

1. 2.4GHz/5.8GHz wireless LAN equipment

2. 2.4GHz/5.8GHz wireless LAN cards

3. 2.4GHz/5.8GHz spread spectrum communication equipment

4. 2.4GHz/5.8GHz wireless LAN equipment with Bluetooth

5. Bluetooth devices (keyboard, mouse, etc.)

III. Private network equipment

1. Digital radio

2. Public walkie-talkies

3. FM handheld radios

4. FM base stations

5. Decentralized terminal equipment

IV. Digital cluster products and broadcasting equipment

1. Mono FM broadcast transmitters

2. Stereo FM broadcast transmitters

3. Medium-wave amplitude modulation (AM) broadcast transmitters

4. Short-wave AM broadcast transmitters

5. Analog TV transmitters

6. Digital broadcast transmitters

7. Digital TV transmitters

V. Microwave equipment

1. Digital microwave communication equipment

2. Point-to-multipoint digital microwave communication system central/terminal stations

3. Point-to-point digital microwave communication system central/terminal stations

4. Digital relay communication equipment

VI. Other radio transmitting equipment

1. Paging transmitters

2. Two-way paging transmitters

Low-power (short-distance) radio devices do not require SRRC certification. For example, toys using 27MHz or 40MHz for remote-controlled aircraft or cars do not need to apply for Radio Type Approval Certification. However, attention should still be paid to national standards requirements for electric toy products, including those using Bluetooth and WIFI technologies.

srrc certificate cycle:

SRRC certificate cycle: approximately 8 weeks;

Validity period: five years.
